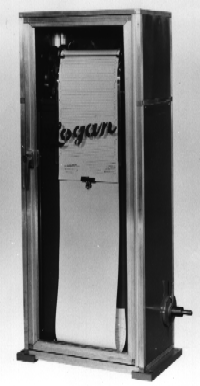

HOIST RECORDER
- Records time versus depth on a chart with an 8½-inch recording width.
- 24-hour chart period at a chart speed of 0.05 inches per minute.
- A large section of the chart is visible through the door.
PRODUCT LINE / REFERENCE 890201
Logan-Lilly®
Hoist controllers.
Hoist safety controllers and auxiliary equipment for mine hoists. Explore controller families, configurations, and supporting equipment.
01 / CONTROLLER FAMILIES
Built around the hoist application.
Logan-Lilly controllers are also popularly known as Lilly Controllers. Contact Logan with your equipment model and serial number to discuss the applicable configuration and documentation.
LOGAN-LILLY® / MODEL CHOIST SAFETY CONTROLLER
MODEL C
For larger or faster hoists.
- Single governor: hoisting speeds up to 1,500 feet per minute.
- Duplex governor: hoisting speeds up to 3,600 feet per minute.
- Standard overspeed trip and warning contacts, selective limit switches, rotation sensing switch, and acceleration features.
Options & configurations
- Man-Safety features
- Long-range cam dial drive, with or without Man-Safety
- Reduced-speed package
- Reversing directional switch
- Powered Man-Safety operators
- Variable-depth equipment
- Mechanical retard warning gong or electrical contacts
- Auxiliary emergency brake operators for hydraulic or air brakes
LOGAN-LILLY® / MODEL DHOIST SAFETY CONTROLLER

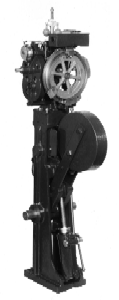

MODEL D
For medium-speed hoists.
- Hoisting speeds up to 1,500 feet per minute.
- Selective limit switches, overspeed trip, and warning are standard.
Options & configurations
- Indicator dial, 24–36 inches in diameter
- Additional cam dial with travel switches
- Extra travel switch package
- Man-Safety equipment for handling men or ore to different limits or at different speeds
- Powered operators for Man-Safety
- Swivel directionable base to face the optional indicator dial toward the operator
- Reduced-speed package
- Long-range dial drive
- Auxiliary emergency brake operators for hydraulic or air brakes
LOGAN-LILLY® / SIMPLEXHOIST SAFETY CONTROLLER
SIMPLEX
For smaller or slower hoists.
- For hoists that do not require accelerating or Man-Safety features.
- Hoisting speeds up to 1,000 feet per minute.
- With or without a 24–36 inch indicator dial.
- Combination overspeed and limit switch, non-selective.
Options & configurations
- Emergency brake weight equipment for hand-type brakes
- Power resetting equipment for brake weight unit
- Additional selective limit switches
- Governor inactive switch
- Long-range dial drive
- Overspeed warning contacts
02 / AUXILIARY EQUIPMENT
Beyond the controller.

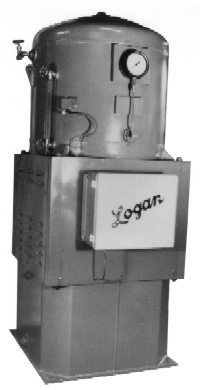

HYDRAULIC PRESSURE SUPPLY UNIT
- 150 PSI standard; 300 PSI optional.
- Supply capacities: 20, 30, or 40 GPM.
- Twin motor/pump equipment and air accumulator.
DEPTH / HEIGHT INDICATORS
- Dials up to 60 inches in diameter.
- Standard or Vernier type.
ARIDIFIER® MOISTURE SEPARATORS
- For compressed air and gas lines.
- Sizes for ¾-inch to 10-inch diameter pipelines.
- Pressure rating: 150 PSI.
- Flow rates: 6–22,000 SCFM.
ANGLE BEARINGS & GEAR UNITS
- Hub-mounted controller drive units.
- Right-angle boxes.
- Omni-Angle units (shown).
PARTS / DOCUMENTATION / EQUIPMENT INQUIRIES
Talk to Logan.
Have your controller model and serial number ready.
