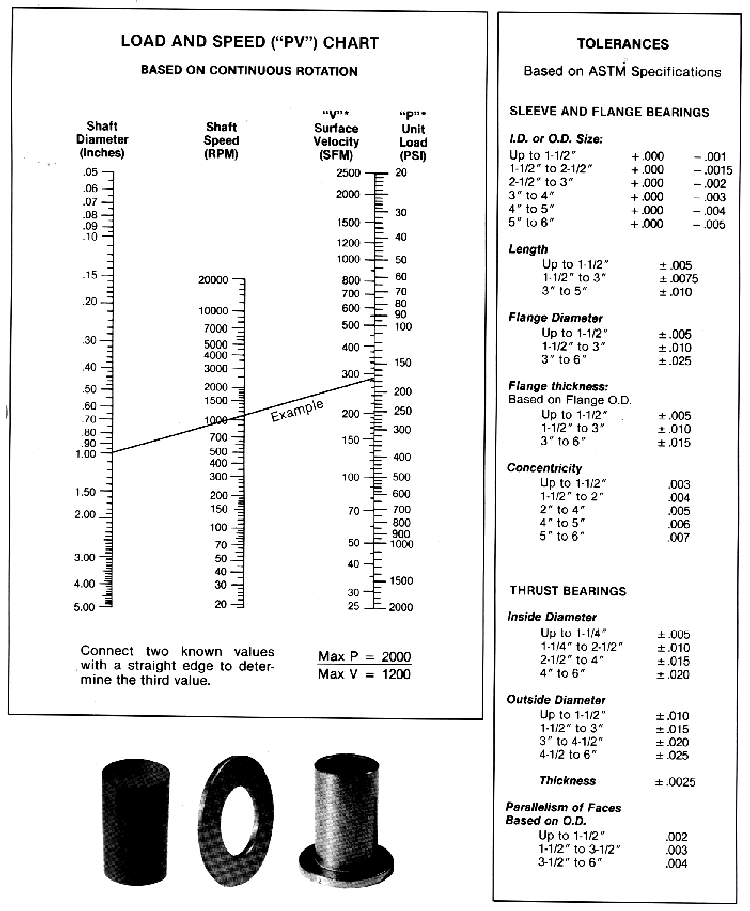

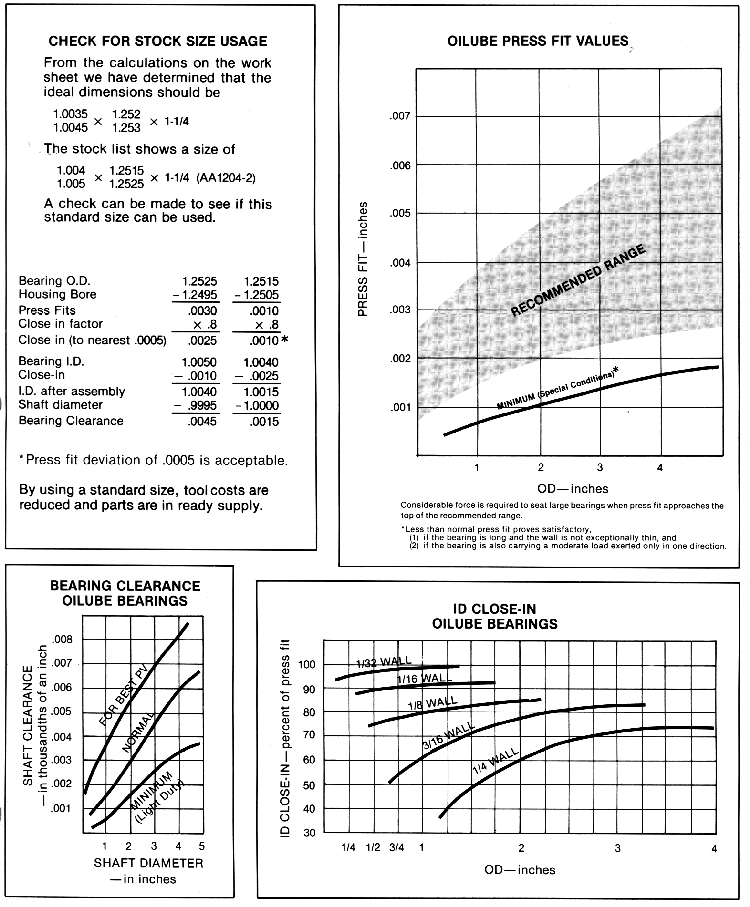

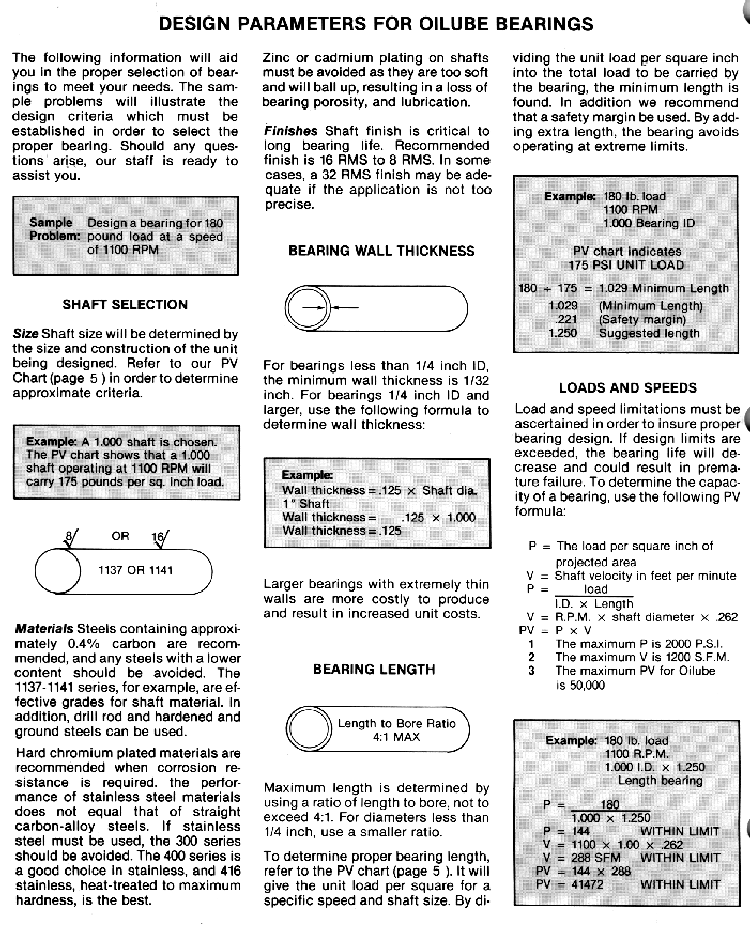

Oil Impregnated Sintered Bronze Sleeve Bearings

Reference material from the Logan archive.

LOGAN ACTUATOR CO.HARVARD, ILLINOISFAMILY OWNED

The following images are courtesy of Isostatic Industries Inc., 4153 N. Kostner Ave, Chicago, IL

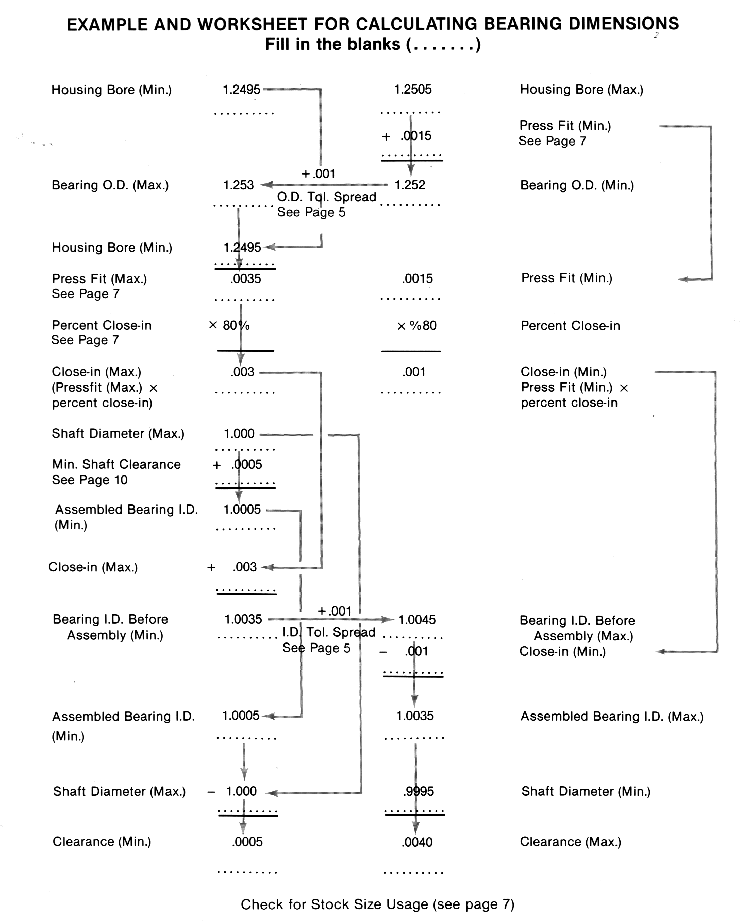

oilube3.gif (56598 bytes)Example and Worksheet for calculating Bearing Dimensions
